Layout Planner

What it is for

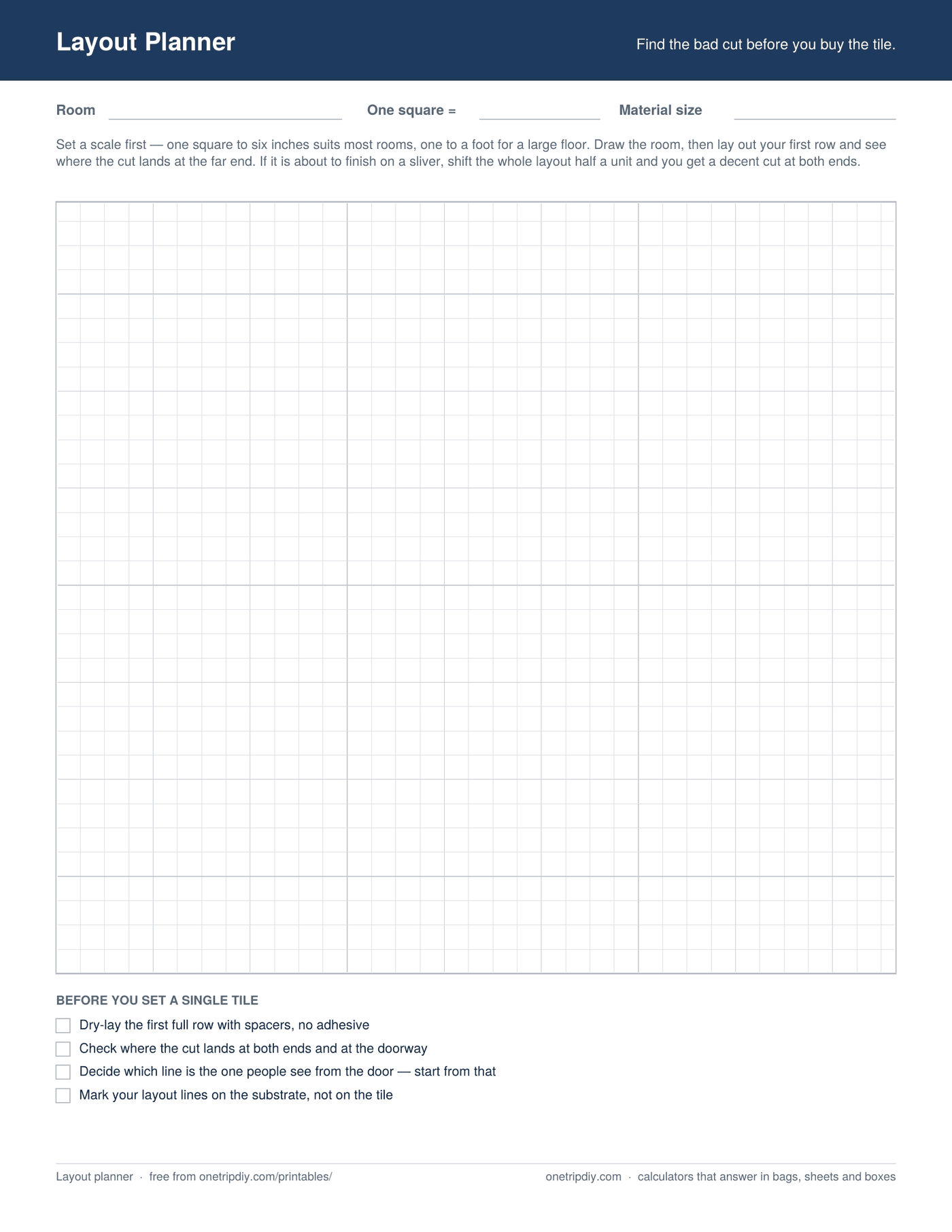

Graph paper with a scale box, so a square means something. Draw the room, set out your first row, and look at where the cut lands at the far end — before any material is bought or any adhesive is mixed.

This is the single decision that separates a tiling or flooring job that looks planned from one that looks improvised, and it is invisible in every calculation. The quantity can be perfectly right and the layout still wrong.

Setting the scale

Fill in the one square = box first. Sensible choices:

• One square to six inches — most rooms, and most tile sizes land on neat boundaries.
• One square to one foot — a large floor, an open-plan space, or a patio.
• One square to one tile — the quickest way to count a small backsplash or a feature panel, though it hides the cuts.

Every fourth line is darker, so at six inches to a square those heavier lines are two feet apart and you can read distances off the grid without counting squares.

The thing to look for

Lay out a full row across the room and see what is left at the end. If you are about to finish on a sliver — anything under about a third of a tile — shift the whole layout half a tile and you get a decent cut at both ends instead of a full tile at one and a splinter at the other.

Then check the same thing in the other direction, and check the doorway. The line people actually see is the one framed by the door when they walk in, and it is worth starting your layout from there rather than from whichever wall happens to be longest.

Also useful for

Pavers and patio layouts, where the pattern and the border decide the waste factor. Deck board runs and where the butt joints fall. Laminate and vinyl plank, where the stagger between rows has a minimum and the room length decides whether the last row is a full plank or a strip.

Once the layout works on paper, the tile, flooring and paver calculators will tell you how much to buy — including the waste allowance the pattern you just drew actually needs.
